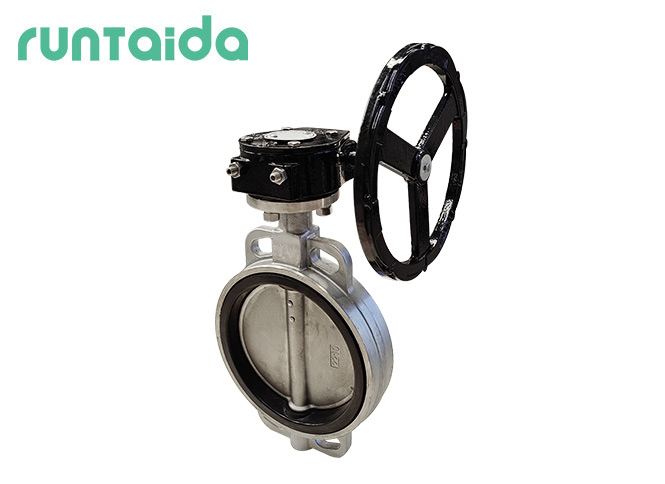

SS wafer butterfly valve

The wafer pattern butterfly valve with stainless steel disc and EPDM liner is a reliable and durable valve suitable for a wide range of industrial applications.

It is designed to regulate and control the flow of various fluids, including liquids and gases, in pipelines. Featuring a sturdy construction, this butterfly valve is built with a stainless steel disc. The stainless steel material provides excellent resistance to corrosion, ensuring long-lasting performance even in harsh operating conditions.

The valve’s disc design allows for quick and efficient on/off operation, making it ideal for applications that require frequent opening and closing. The EPDM liner used in this butterfly valve offers superior sealing properties, excellent resistance to chemicals, heat, and weathering. The EPDM liner ensures a tight seal when the valve is closed, preventing leakage and ensuring smooth operation.

This wafer pattern butterfly valve is designed for easy installation between flanges, making it a cost-effective choice. Its compact design allows for space-saving installation in pipelines with limited clearance. The valve is available in various sizes to accommodate different pipe diameters, providing flexibility for different system requirements.

With its stainless steel disc, EPDM liner, and user-friendly design, this wafer pattern butterfly valve offers reliable performance, durability, and efficient flow control. It is suitable for applications in industries such as chemical processing, water treatment, HVAC, and more. Choose the wafer pattern butterfly valve with stainless steel disc and EPDM liner for your fluid control needs and experience high-quality performance and longevity.

Product parameters:

valve body:SS304

Valve seat:EPDM

butterfly disc:SS304

valve shaft:420

Actuator:Gearbox

Size:DN50-DN1200

Pressure:PN10/PN16

Optional:

Valve body:CI/DI/WCB/CF8/CF8M/Bronze

Valve seat:NBR/EPDM/SI/PTFE/VITON/Wearresistance/Heat resistance/Food grade EPDM

butterfly disc:DI/WCB/CF8/CF8M/C954

valve shaft:45/420/304/316

Actuator:Handle/Gearbox/Electric/Pneumatic

Executive standard:

Design and manufacture:GB/T 12238

Face to face length:GB/T 12221

Pressure test:GB/T 13927

Top flange:ISO 5211

End flange:GB/T 17241.6

Wafer Butterfly Valve Series:

Check before installation:

What can we do for you?

一:For engineering customers

1.provide solutions(According to customer needs)Meet the working conditions

2.Provide drawings/technical support/ installation maintenance

3.Competitive price

二:for Dealer customers

1.Competitive price

2.Customized service(OEM/ODM/Productcatalog/ technical information, packing plan)

3.Visual production

4.Timely delivery

5.Payment method (TT, LC, etc. are acceptable)

6.Large quantity is preferred
