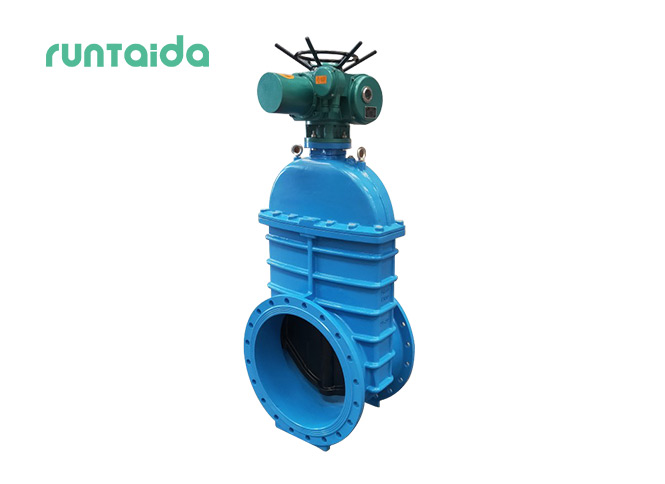

What is electric gate valve?

Electric gate valve refers to the linear movement of the electric gate valve actuator through electric voltage and signal control to open or close the gate valve.which is mainly divided into an upper part and a lower part. The upper part is an electric actuator, and the lower part is a gate valve.

How does electric gate valve work?

The electric gate valve is powered by electric energy and the electric actuator controls the opening and closing of the gate valve to work to achieve the on-off of the pipeline medium.  turn on the electric actuator to drive the valve, and the valve stem is connected to drive the valve plate to move up and down or open and close, so that the valve can control the switch of the pipeline medium.

It can be remotely controlled when it is added into the control box and other accessories, which is convenient and trouble-free. It can help you achieve the purpose of remote control, help you reduce labor costs, and improve production efficiency.

product description:

Size:DN50-DN1200

Valve body:DI

Valve Seat:EPDM

Valve disc:DI+EPDM

Shaft:2Cr13

Pressure:PN10/PN16

Actuator: electric

Optional:

valve body:DI

Valve seat:NBR/EPDM

Valve disc:DI+NBR/DI+EPDM

Valve shaft:45/2Cr13s/304/316

Actuator::handwheel/electric/pneumatic/bevel gear

Executive standard:

Design and manufacture:CJ/T216

Face to face length:GB/T 12221

Pressure test:CJ/T216

End flange:GB/T 17241.6

What can we do for you？

一:For engineering customers

1.provide solutions(According to customer needs)Meet the working conditions

2.Provide drawings/technical support/ installation maintenance

3.Competitive price

二:for Dealer customers

1.Competitive price

2.Customized service(OEM/ODM/Productcatalog/ technical information, packing plan)

3.Visual production

4.Timely delivery

5.Payment method (TT, LC, etc. are acceptable)

6.Large quantity is preferred

Company qualification
