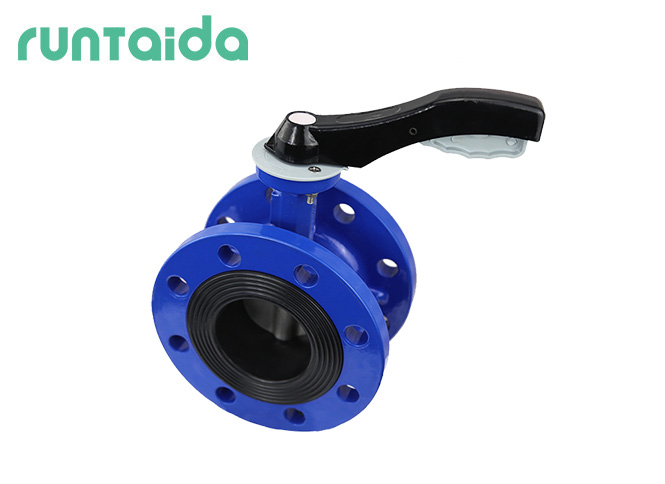

Handle flanged butterfly valve

about butterfly valve:

Butterfly valve, is a simple structure of the control valve, it can be used to control the flow of air, water, steam, corrosive media, mud, oil, and other types of fluid. It is mainly used for cutting and throttling in pipelines. Butterfly valve opening and closing parts is a disc shaped disc, in the valve body around its own axis rotation, so as to achieve the purpose of opening and closing or regulation.

Flanged butterfly valves are free from fluid leakage. They can be installed where space is limited, unlike other large-sized valves. These valves are used in shut-off and throttling fluid flow applications. These valves operate by making a quarter turn which makes their operations very fast.

Product advantages:
        1. 1.Heavy body,the thickness of valve body meets the requirements of GB26640 to ensure bearing strength.
        2. 2.epoxy coating, spray thickness up to 250um.Strong adhesion.
        3. 3.import EPDM rubber material. 50 percent rubber content, Stable and small torque, zero leakage after open and close more than 10000 times .
        4. 4.Wider rubber seat,wider contact surface with flange.better sealing performance.
        5. 5.Each valve will be wasted by ultrasonic cleaner before packing, Remove dirt and granularities from valve body. Prevent the valve itself from coordinating the media in pipes.

Product parameters:

valve body:DI

Valve seat:EPDM

butterfly disc:DI

valve shaft:45

Actuator:Aluminium handle




Valve body:CI/DI/WCB/CF8/CF8M/Bronze

Valve seat:NBR/EPDM/SI/PTFE/VITON/Wearresistance/Heat resistance/Food grade EPDM

butterfly disc:DI/WCB/CF8/CF8M/C954

valve shaft:45/420/304/316


Executive standard:

Design and manufacture:GB/T 12238

Face to face length:GB/T 12221

Pressure test:GB/T 13927

Top flange:ISO 5211

End flange:GB/T 17241.6

Flange butterfly valve series:

Check before installation:

What can we do for you?

一:For engineering customers

1.provide solutions(According to customer needs)Meet the working conditions

2.Provide drawings/technical support/ installation maintenance

3.Competitive price

二:for Dealer customers

1.Competitive price

2.Customized service(OEM/ODM/Productcatalog/ technical information, packing plan)

3.Visual production

4.Timely delivery

5.Payment method (TT, LC, etc. are acceptable)

6.Large quantity is preferred
