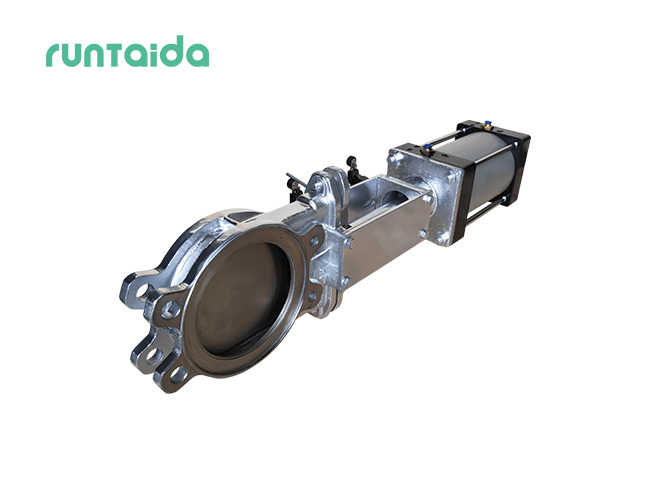

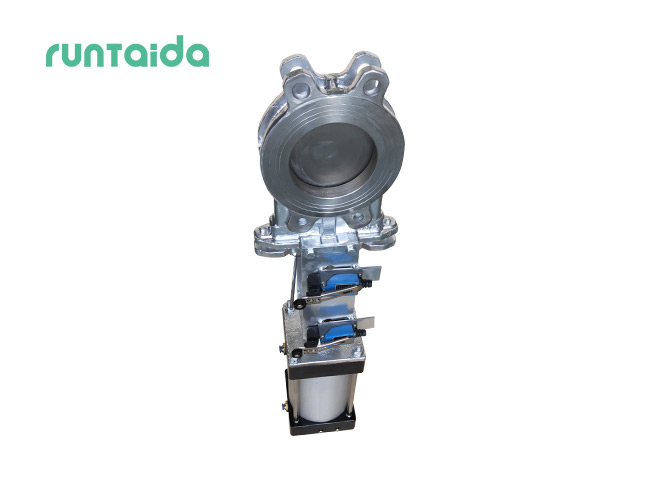

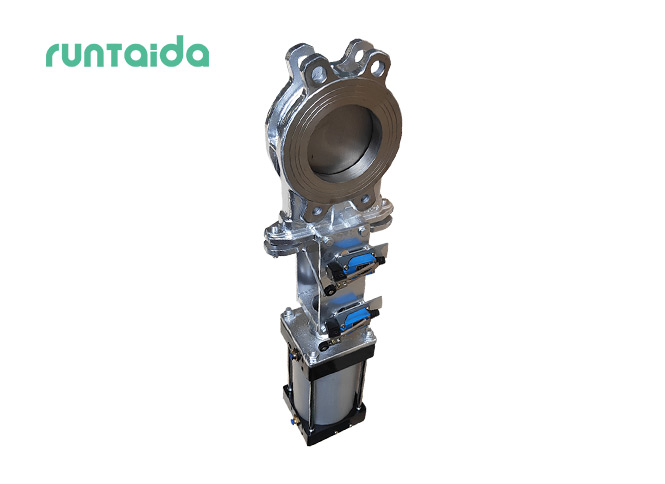

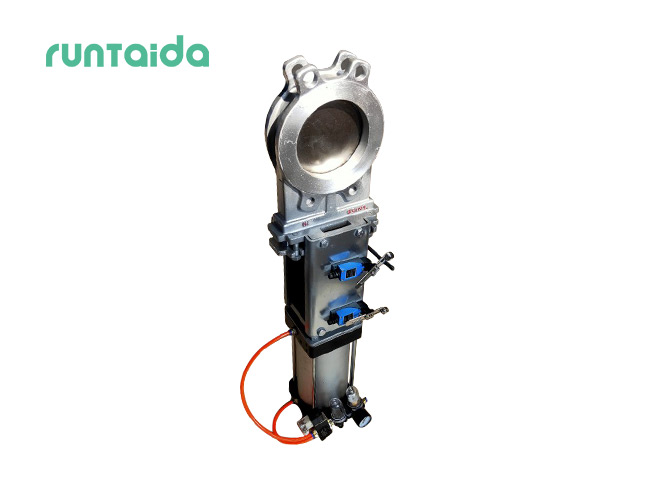

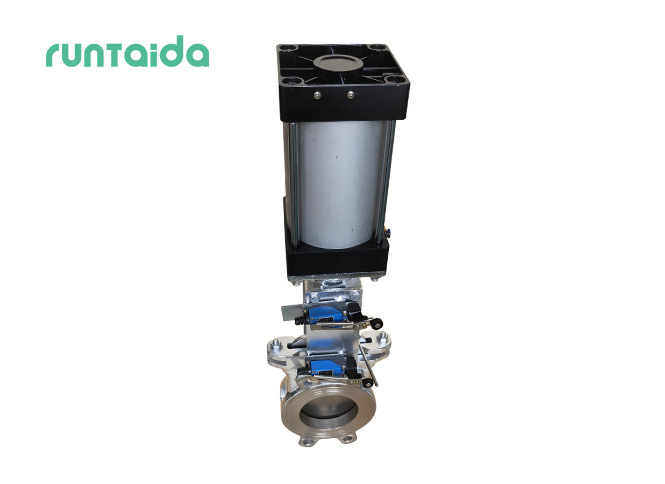

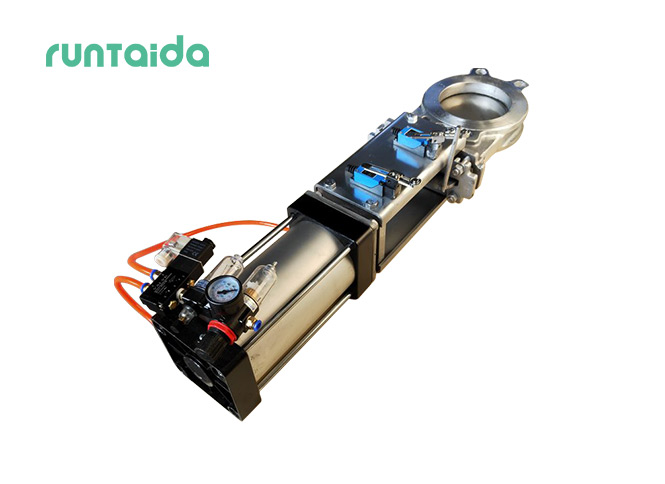

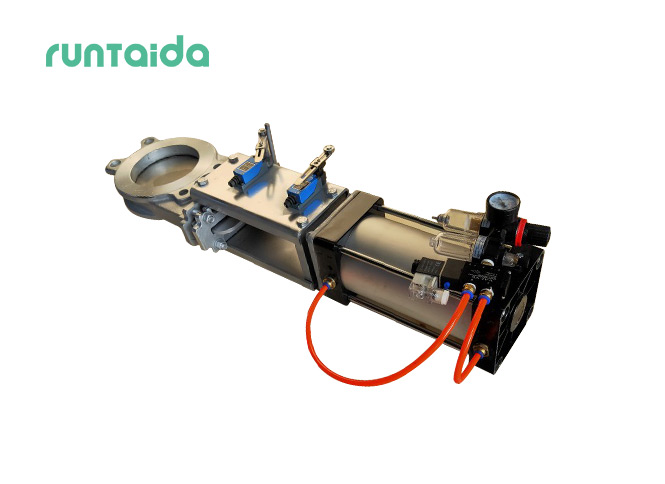

The Pneumatic Knife Gate Valve is a heavy duty unit with cast body, knife gate, stuffing box with packing and oversized air cylinder or manual hand crank.
Features :
1.Heavy Duty Cast Construction
2.Stainless Steel Construction
3.Thick beveled edge knife plate
4.Resilient rubber seats seal against pressure and vacuum
5.Pneumatic or manual actuation
6.Oversized air cylinder for pneumatic units
What is the working principle of knife gate valve?
A knife gate valve works by allowing thick media to easily flow over soft seals with no interference. They work by chopping up the media as it passes through the valve.
Application:
such as granules, powder and slurry,(syrup,pulp,coal slurry)ash slag water mixture, etc.
product description:
Size:DN50-DN1000
Type:wafer
Valve body:SS304
Valve Seat:EPDM
Valve disc:SS304
Shaft:SS304
Pressure:PN10/PN16
Actuator: Pneumatic
Optional:
valve body:DI/WCB/CF8/CF8M
Valve seat:EPDM/SS/Hard alloy/PTFE
Valve disc:201/304/316
Valve shaft:2Cr13/304/316
Actuator::handwheel/electric/pneumatic/bevel gear/chain wheel/electric hydraulic/hydraulic
Executive standard:
Design and manufacture:JB/T 8691
Face to face length:GB/T 12221
Pressure test:GB/T 13927
Product Inventory:
Installation instructions:1.Before installing the knife gate valve, check the valve cavity and sealing surface, and no dirt or sand particles are allowed to adhere.
2.The bolts of each connecting part shall be tightened evenly.
3.Check the packing position to ensure the tightness of the packing and the flexible opening of the ram.
4.Before installing the valve, the user must check the valve model, connection size and medium flow direction to ensure the consistency with the valve requirements.
5.When installing the valve, the user must reserve the necessary space for valve driving.
6.The wiring of driving device shall be carried out according to the circuit diagram.
7.The knife gate valve must be maintained regularly, and it is not allowed to collide and squeeze at will, so as not to affect the sealing.
