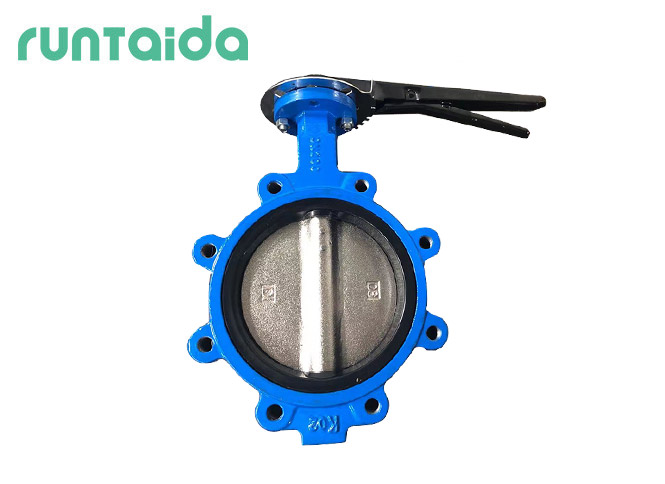

Lug wafer butterfly valve with handle

Lug Butterfly Valve Description:

Because the valve is widely used, the same kind of valve has different matching in different occasions and working conditions.

The butterfly plate of the wafer type lug butterfly valve is installed in the diameter direction of the pipeline. In the cylindrical passage of the butterfly valve body, the disc-shaped butterfly plate rotates around the axis with a rotation angle of 0~90°Between, rotate to 90 °At the same time, the valve is fully open.

Product advantages:

  1. Heavy body,the thickness of valve body meets the requirements of GB26640 to ensure bearing strength.
  2. epoxy coating, spray thickness up to 250um.Strong adhesion.
  3. import EPDM rubber material. 50 percent rubber content, Stable and small torque, zero leakage after open and close more than 10000 times .
  4. Wider rubber seat,wider contact surface with flange.better sealing performance.
  5. Each valve will be wasted by ultrasonic cleaner before packing, Remove dirt and granularities from valve body. Prevent the valve itself from coordinating the media in pipes
Product parameters:

valve body:DI

Valve seat:EPDM

butterfly disc:DI

valve shaft:45

Actuator:Aluminium handle




Valve body:CI/DI/WCB/CF8/CF8M

Valveseat:NBR/EPDM/PTFE/VITON/Wearresistance/Heat resistance/Food grade EPDM

butterfly disc:DI/WCB/CF8/CF8M/C954

valve shaft:45/420/304/316


Executive standard:

Design and manufacture:GB/T 12238

Face to face length:GB/T 12221

Pressure test:GB/T 13927

Wafer Butterfly Valve Series:

Check before installation:
